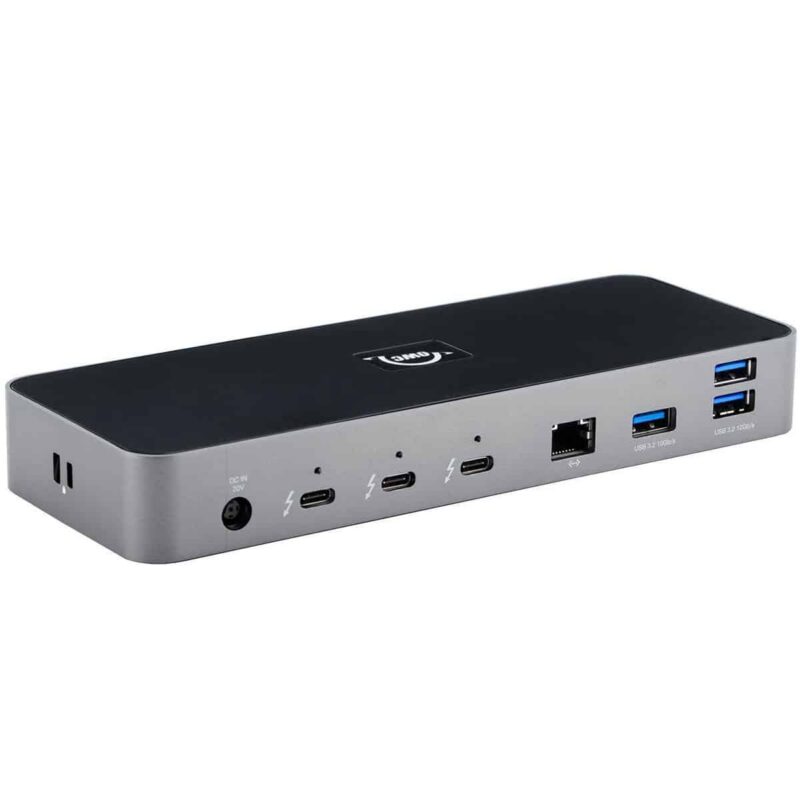

OWC 11-Port Thunderbolt 4 Dock

Add 3 x Thunderbolt 4 ports, 4 x USB ports, along with Ethernet, audio, and SD card reader functionality to your Thunderbolt 3 Mac or Thunderbolt 4 PC.

£238.80 inc.Vat | £199.00 ex.VAT

SKU: OWCTB4DOCK Categories: , , Tags: , Brand:

Description

Use the 11-Port OWC Thunderbolt 4 dock to connect devices, old and new.

Three Thunderbolt ports and four USB ports empower you to connect to past, present and future devices including:

  • Up to two 4K displays or a 5K/6K/8K display.
  • High-performance storage including NVMe SSDs.
  • A/V mixers, phones, tablets, even desktop accessories like a keyboard or mouse.

With the OWC 11-Port Thunderbolt Dock, an entire world of USB and Thunderbolt accessories is ready for you to connect and expand your capabilities.

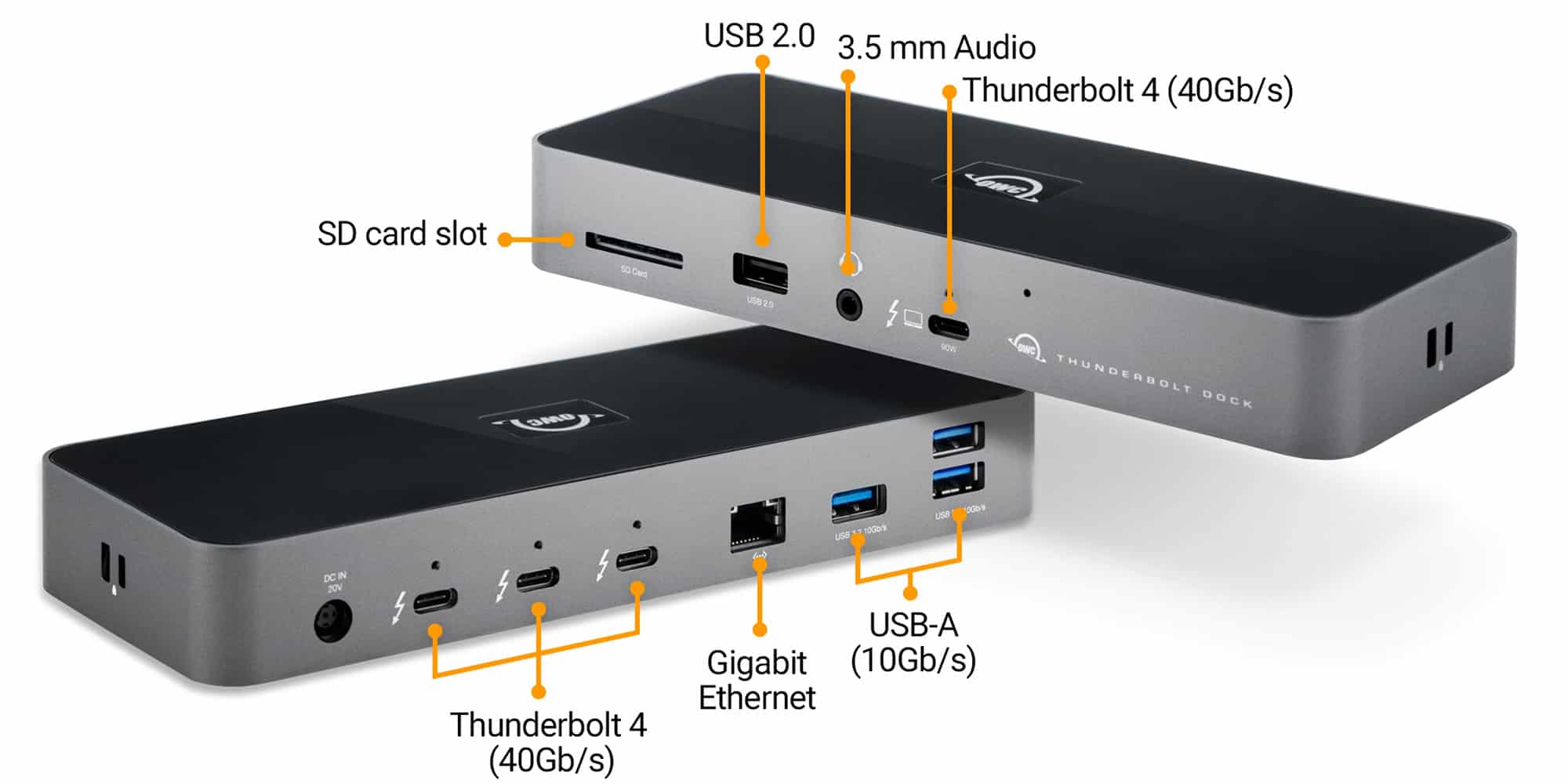

OWC Thunderbolt Dock Connections

OWC 11 Port Thunderbolt Dock - connections

The latest Thunderbolt interface uses a universal USB-C connector to transfer data, output video, and charge devices through the same cable.

The OWC 11-Port Thunderbolt Dock’s Thunderbolt ports use that same USB-C connector to create a multi-connectivity solution for millions of existing and future Thunderbolt and USB-C computers and devices. Plus, the ports are fully USB4 future compatible.

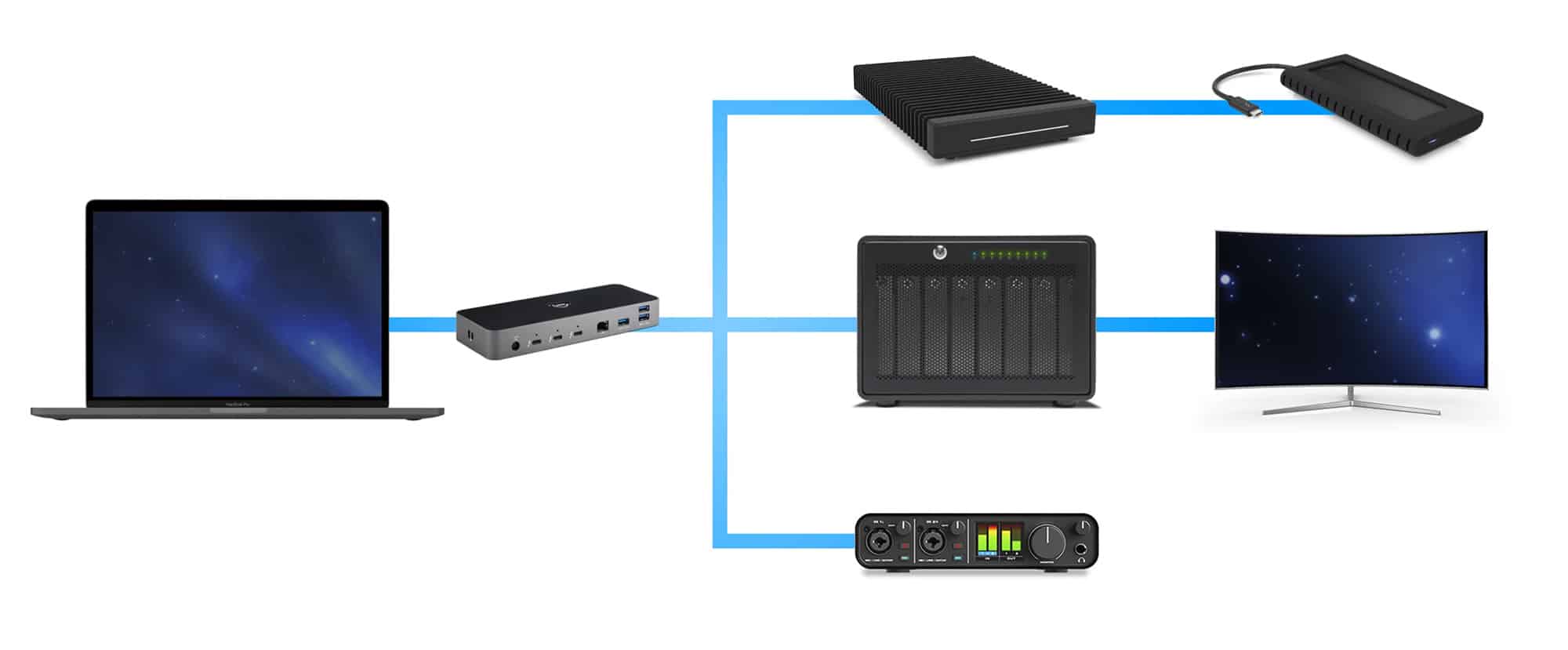

Daisy Chain

OWC Thunderbolt Dock - Daisy Chain Mac

Daisy chains are perfect for connecting a lot of devices to a single port, but remove any device other than the last one and you’re left with the hassle of disconnecting and reconnecting devices.

The OWC 11-Port Thunderbolt Dock lets you create three separate “tree branch” device chains, so you can remove devices from one chain without affecting or disconnecting the others. You can even add three Thunderbolt bus-powered devices.

Plug In Multiple Bus-Powered Thunderbolt Drives

In the past, daisy chaining external Thunderbolt storage required you to place it close to the front of the chain to get fast and reliable performance. That wasn’t possible with bus-powered drives. They had to be placed last in the Thunderbolt chain as the chain was limited to just one bus-powered device.

Now, you can connect multiple portable Thunderbolt drives and SSDs directly to the OWC 11-Port Thunderbolt Dock to experience the fastest speed your storage device can deliver!

Other Features

  • SD Card Reader.
  • Gigabit Ethernet port.
  • Connect a single 5K/6K/8K display or up to two 4K displays.



Compatibility

MAC – The OWC 11-Port Thunderbolt Dock works with any Mac with an available Thunderbolt 3 port running macOS 11.1 Big Sur.

Windows PC – Works with any Windows PC with an available Thunderbolt 4 port.

Technical Specifications

Host Interface Requirements

  • Thunderbolt 5
  • Thunderbolt 4
  • Thunderbolt 3 (Mac Only)
  • USB4
  • USB-C

Mac OS Compatibility

  • macOS 11.x Big Sur
  • macOS 12.x Monterey
  • macOS 13.x Ventura
  • macOS 14.x Sonoma
  • macOS 15.x Sequoia
  • macOS 26.x Tahoe

PC OS Compatibility

  • Windows 10 64-bit Edition
  • Windows 11

Mobile OS Compatibility

  • iPadOS 26
  • iPadOS 18
  • iPadOS 17
  • iPadOS 16
  • iPadOS 15
  • iPadOS 14
  • iPadOS 13
  • Android 15.x
  • Android 14.x
  • Android 13.x
  • Android 12.x
  • Android 11.x

Other OS Compatibility

  • Chrome OS

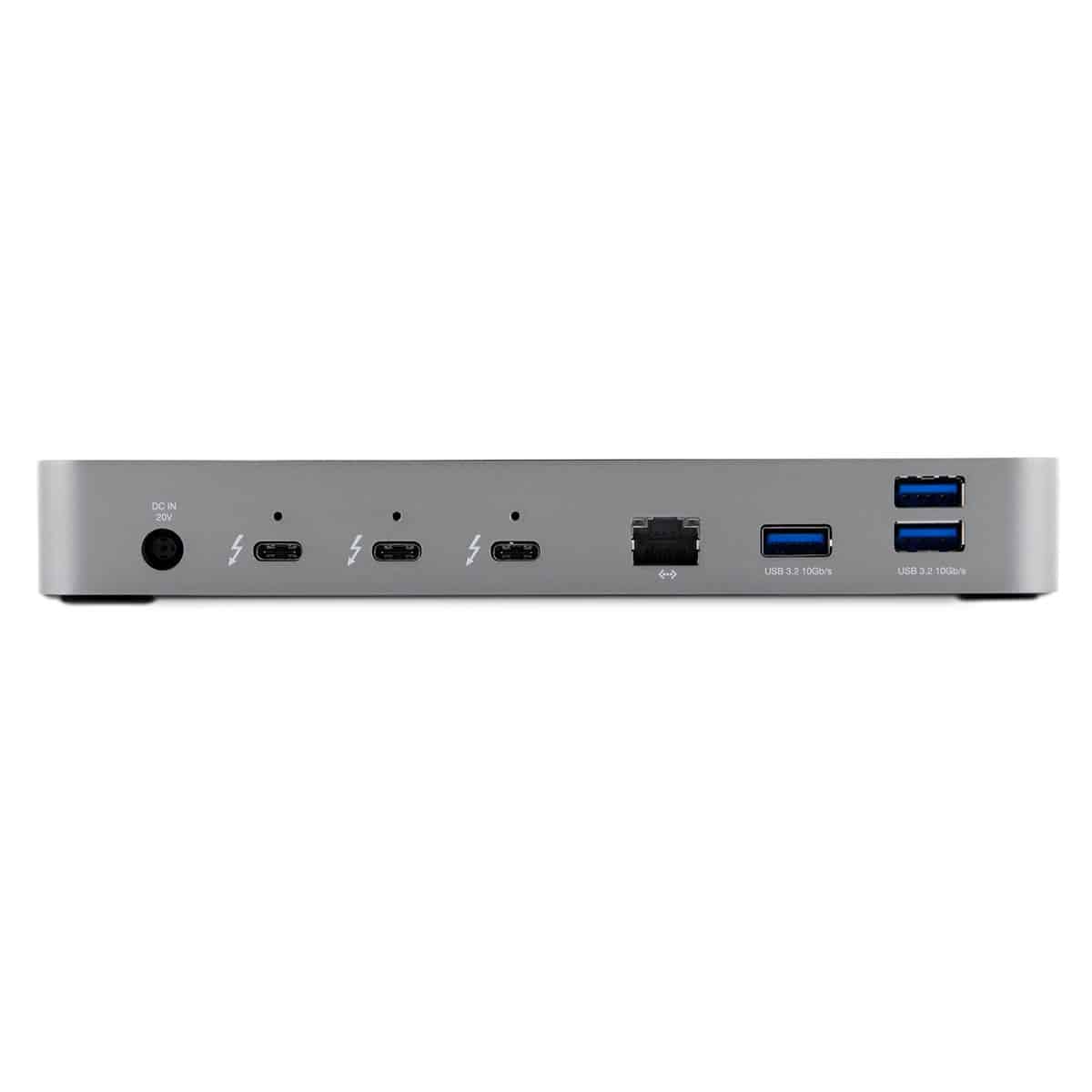

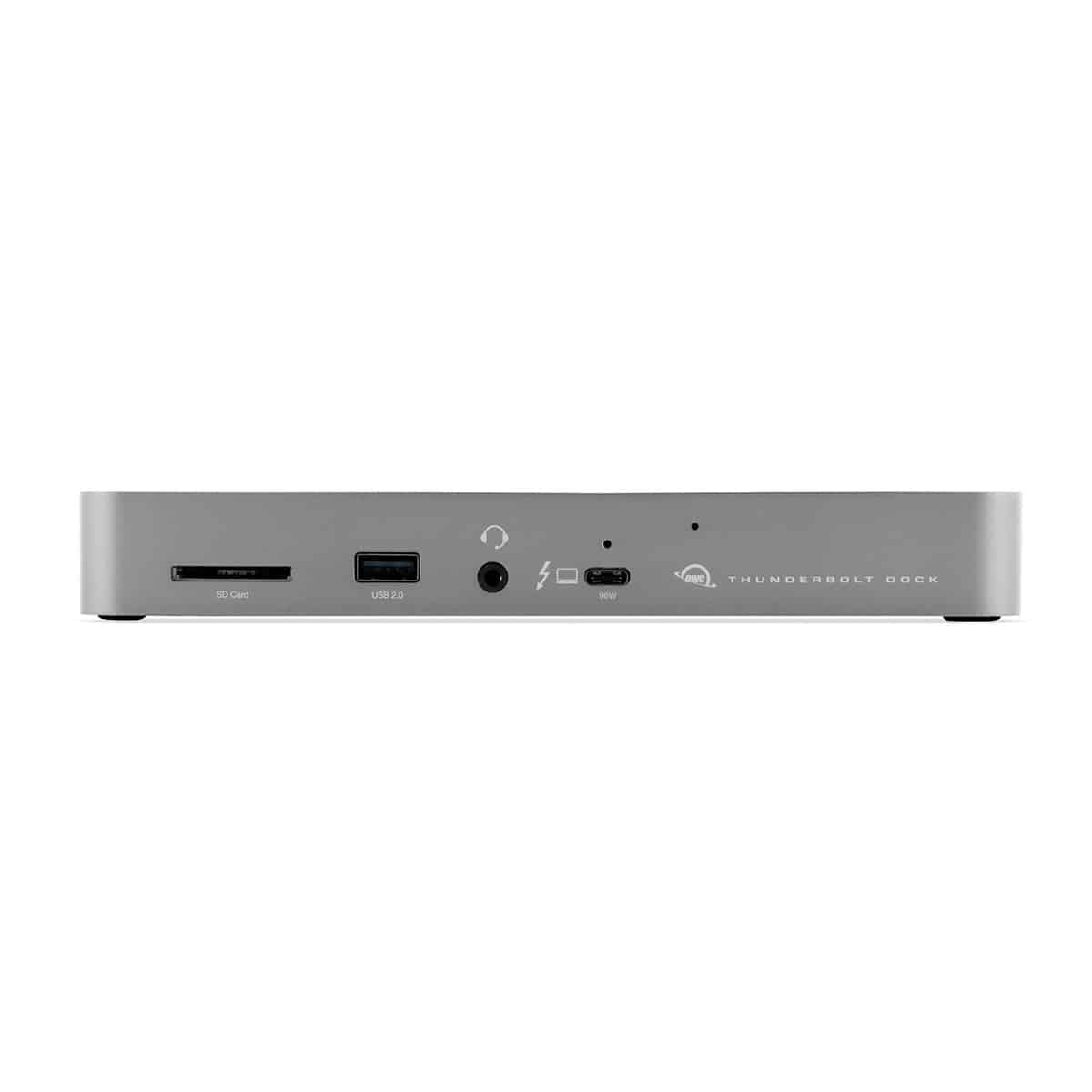

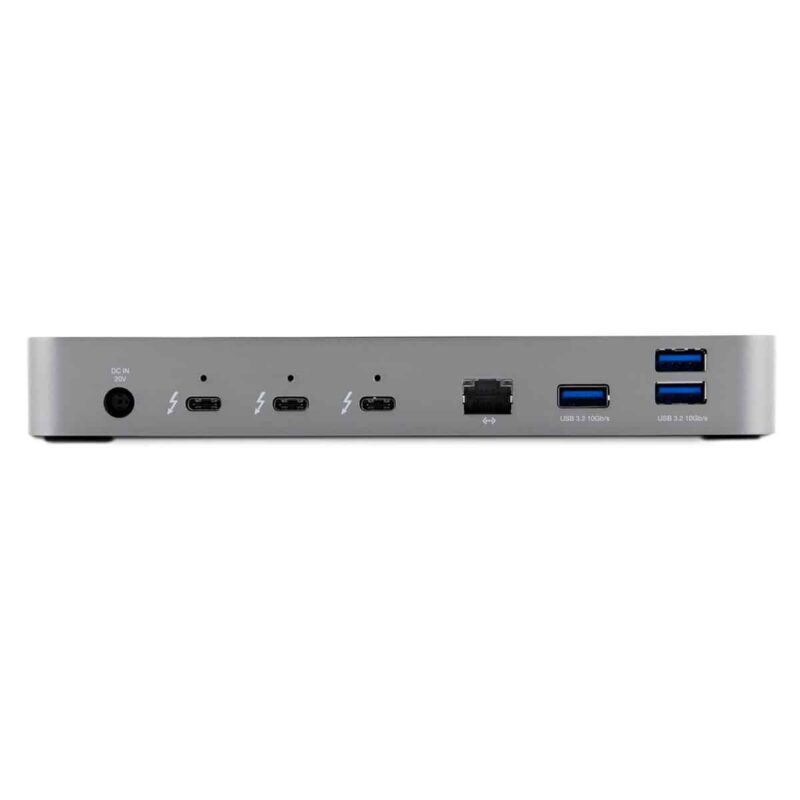

Device Ports

  • (1) Host Port – Thunderbolt 4 (USB-C) up to 40Gb/s (5000MB/s)
  • (3) Thunderbolt 4 (USB-C) Ports
  • (3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) – USB 2.0/3.0 backwards compatible
  • (1) USB 2.0 Port
  • (1) Gigabit Ethernet (GbE) RJ45 Port
  • (1) 3.5mm Stereo Audio Input/Output Combo Port

Memory Card Slots

  • (1) SD



Power Delivery

  • Thunderbolt 4 host port provides up to 96W of power to the host computer.
  • Thunderbolt 4 device ports (for external drives and other devices) provide 15W of power.
  • USB port provides up to 1.5A of power for bus-powered drives and device charging.

UASP Support

  • UASP (USB Attached SCSI Protocol) is supported

Display Support

  • Up to one 8K display @ 60Hz,
  • or two 4K displays @ 60Hz,
  • or one 4K display @ 120Hz,
  • or one 4K display @ 60Hz,
  • or two 5K displays @ 60Hz

Display Support by Port

  • Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4

Ethernet Speeds (RJ45)

  • 1Gb/s “Gigabit” (1000BASE-T)
  • 100Mb/s (100BASE-T)
  • 10Mb/s (10BASE-T)

Data Rate

  • Up to 40Gb/s

Chipset / Controller

  • Thunderbolt: Goshen Ridge
  • USB: Cypress/HX3PD
  • Ethernet: RTL8153B
  • SD Reader: GL3226

Additional information

Manufacturer

OWC

Interface

Power

Mains Powered

Warranty

2 Years
