Areca ARC-8050T3 12-Bay RAID Desktop

The Areca Arc 8050 12-BAY is a High performance RAID storage device that can take up to 12 x SAS or SATA 3.5″ HDD’s or 2.5″ SSD’s.

  • High performance 40Gbps Thunderbolt 3 interface.
  • Support simultaneous 4K in/output workflow.
  • Dual Thunderbolt 3 ports for daisy-chaining.
  • Fully support Apple M1 silicon on Macs.
  • Advanced configuration for video optimized performance settings.
  • Controller-level hardware encryption (not available for 4-Bay)



Call or email sales for a competitive quote on the 12-BAY Areca – up to 264TB!

SKU: ARC-8050T3-12 Categories: , Tag:

Description

The Areca ARC-8050T3 is the most complete 12Gb/s SAS 12-bay Thunderbolt 3 desktop SAS/SATA RAID storage with RAID control capabilities solution for both PC and Mac.

ARC-8050T3 incorporated on-board RAID-On-Chip and ECC SDRAM memory to deliver true high performance hardware RAID protection against drive failure. This combination helps to provide a high performance storage device perfect for the video editor working with Real time multi-stream HD and 4K workflows.

Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all, delivering the fastest, most versatile connection to any dock, display, or data device. ARC-8050T3 is equipped with dual Thunderbolt 3 ports for connecting to any Thunderbolt 3-enabled host and offers an additional Thunderbolt 3 port for daisy-chaining other peripherals. The Thunderbolt daisy-chaining allows connection of up to six devices, so customers can connect ARC-8050T3 for massive amounts of video storage with a single Thunderbolt connection to their host computer.

Powerful Broadcom 12G SAS Engine

ARC-8050T3-6/6M/8/12 series integrate the latest Broadcom 12Gb/s dual core SAS Raid-on-Chip to give you the maximum SAS and SATA bandwidth and protection you need to tackle even the hardest challenging tasks easily.

True Hardware RAID Controller

At the heart of ARC-8050U3-6 RAID storage is the incredibly powerful dual-core Broadcom SAS3108 ROC, giving effortless performance as desirable. It delivers true hardware RAID function without sharing the CPU computing power on the host system and also eases off CPU loading as compared to software RAID and when rebuilding an array in the event of a drive failure.

Daisy-chain Multiple Devices

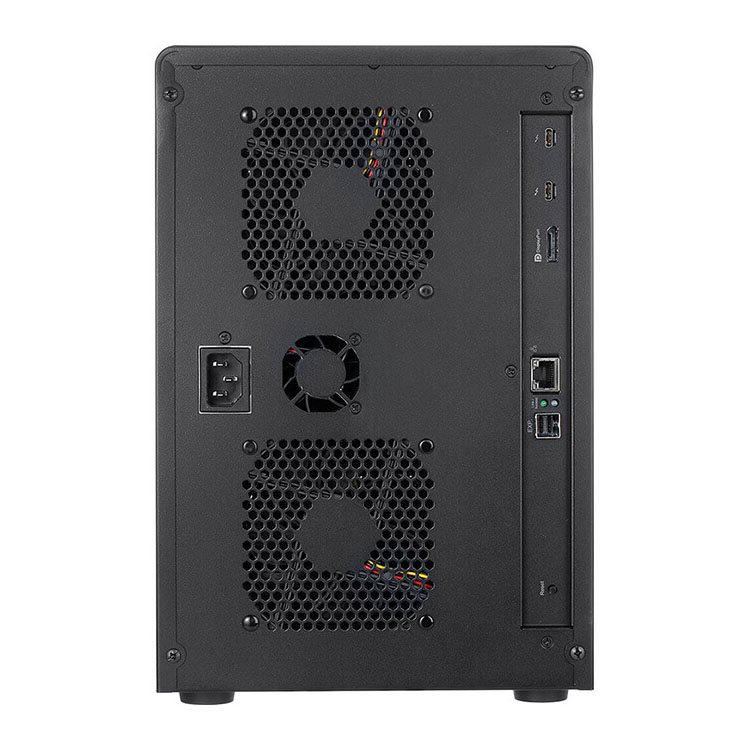

Thunderbolt daisy-chaining allows connection of up to six devices, so customers can connect ARC-8050T3 for massive amounts of video storage with a single Thunderbolt connection to their host computer. Additionally, ARC-8050T3 supports a full sized DisplayPort video output connector on its rear, allowing for a quick and easy 4K 60Hz display setup.

LCD: Easy Configuration & Monitor LCD

Instantly monitor system’s status as a glance

ARC-8050T3 LCD is the primary user interface for the RAID storage. All configuration and management of the controller and its properly connected disk arrays can be performed from this interface. The LCD status panel informs you of the ARC-8050T3 RAID storage real-time operating status at a glance so users can easily grasp the status of the system at all times.

Web Browser-Based Management

McRAID storage manager is firmware-based utility, which is accessible via the web browser installed on your operating system.

The web browser-based McRAID storage manager is a HTML-based application, which utilizes the browser (Safari, IE and Mozilla etc) installed on your monitor station. It can be accessed through the in-band Thunderbolt bus and out of band Ethernet port. The in-band-Thunderbolt bus method can launch the web browser-based McRAID storage manager via ArcHTTP proxy server.

Additional information

Manufacturer

Areca

Drive Bays

Interface

Power

Mains Powered

RAID Modes

JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 6

Warranty

3 Years
