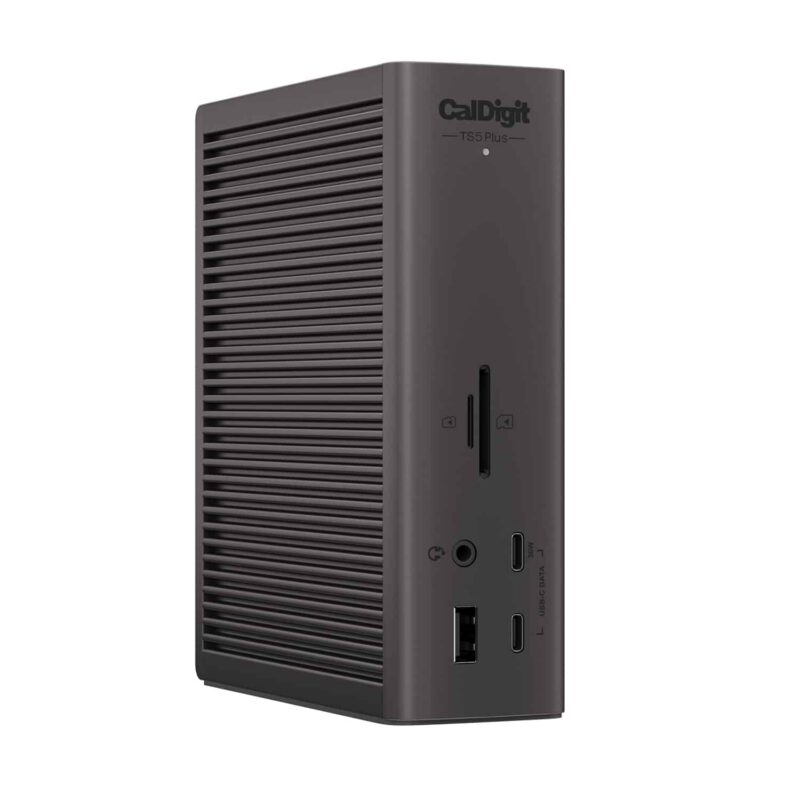

CalDigit TS5 Plus – Docking Station 20 Ports

Description

CalDigit TS5 Plus Thunderbolt 5 Dock – Ultimate High-Performance Connectivity

The TS5 Plus Thunderbolt 5 Dock delivers next-generation performance for creators, professionals, and power users. Designed to maximise productivity through a single Thunderbolt connection, it offers industry-leading speed, power, and expansion for Mac and Windows.

140W Laptop Charging for High-Power Devices

This dock includes 140W power delivery, making it perfect for demanding laptops such as the 16-inch MacBook Pro (M3/M4 Pro/Max). Ideal for users who need fast, reliable charging during heavy workloads.

Three Thunderbolt 5 Ports with 120Gb/s Bandwidth

Equipped with 3× Thunderbolt 5 (80Gb/s) ports and Bandwidth Boost technology, the TS5 Plus supports up to 120Gb/s for high-resolution displays, external GPUs, fast storage, and advanced workflows.

10 Gigabit Ethernet for Ultra-Fast Networking

The integrated 10GbE port offers speeds up to 10× faster than traditional Gigabit Ethernet. Perfect for high-speed file transfers, NAS setups, and professional media environments. Fully backward compatible with 1GbE, 2.5GbE, and 5GbEnetworks.

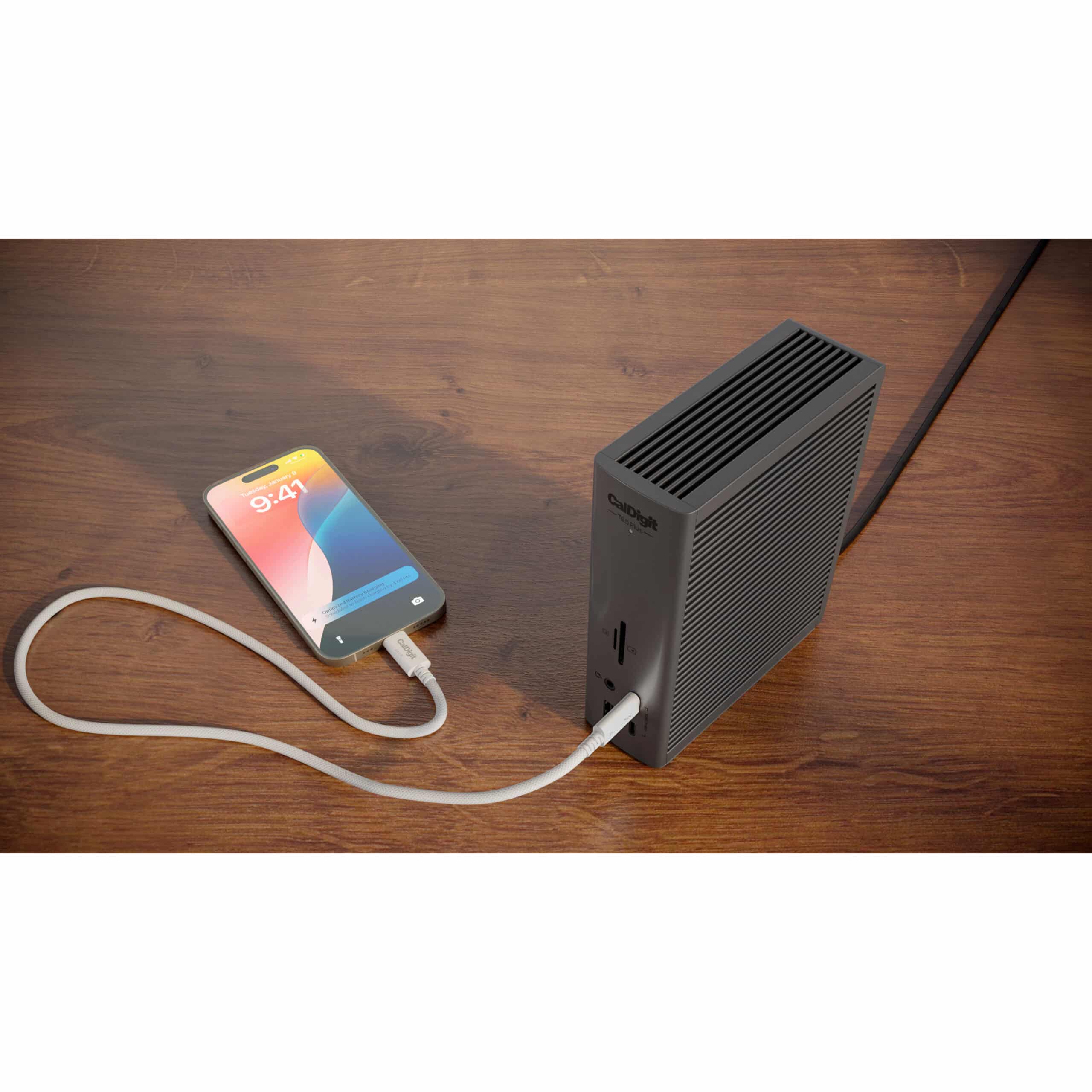

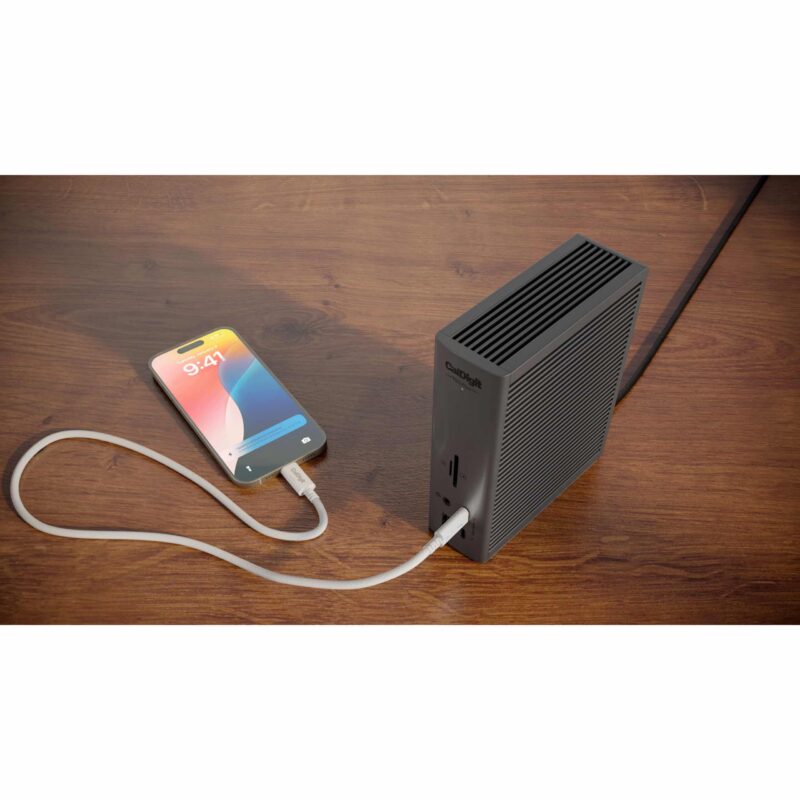

Multiple High-Power USB-C Ports

The TS5 Plus features three 36W USB-C ports, providing fast charging for phones, tablets, SSDs, and demanding accessories. Includes two downstream Thunderbolt 5 USB-C ports for maximum flexibility.

10× High-Speed USB Ports for All Devices

With 5× USB-A (10Gb/s) and 5× USB-C (10Gb/s) ports, this dock offers extensive connectivity for peripherals, storage drives, and external devices—ideal for complex workstation setups.

Dual USB Controllers for Superior USB Performance

Thanks to Dual USB Controllers, the TS5 Plus delivers enhanced USB bandwidth, reduced bottlenecks, and smoother multitasking—outperforming traditional Thunderbolt docks.

Advanced Multi-Display Support

Optimised for high-resolution workflows:

• Mac: Supports dual 4K 240Hz displays

• Windows Thunderbolt 5: Supports triple 4K 144Hz displays

Perfect for video editing, gaming, and multi-monitor productivity.

Broad Compatibility with Mac & Windows

The TS5 Plus works with Thunderbolt 5, Thunderbolt 4, USB4, USB4 v2, and Thunderbolt 3 (Mac) devices. For full feature support, pair with a Thunderbolt 5 or USB4 v2 host computer.

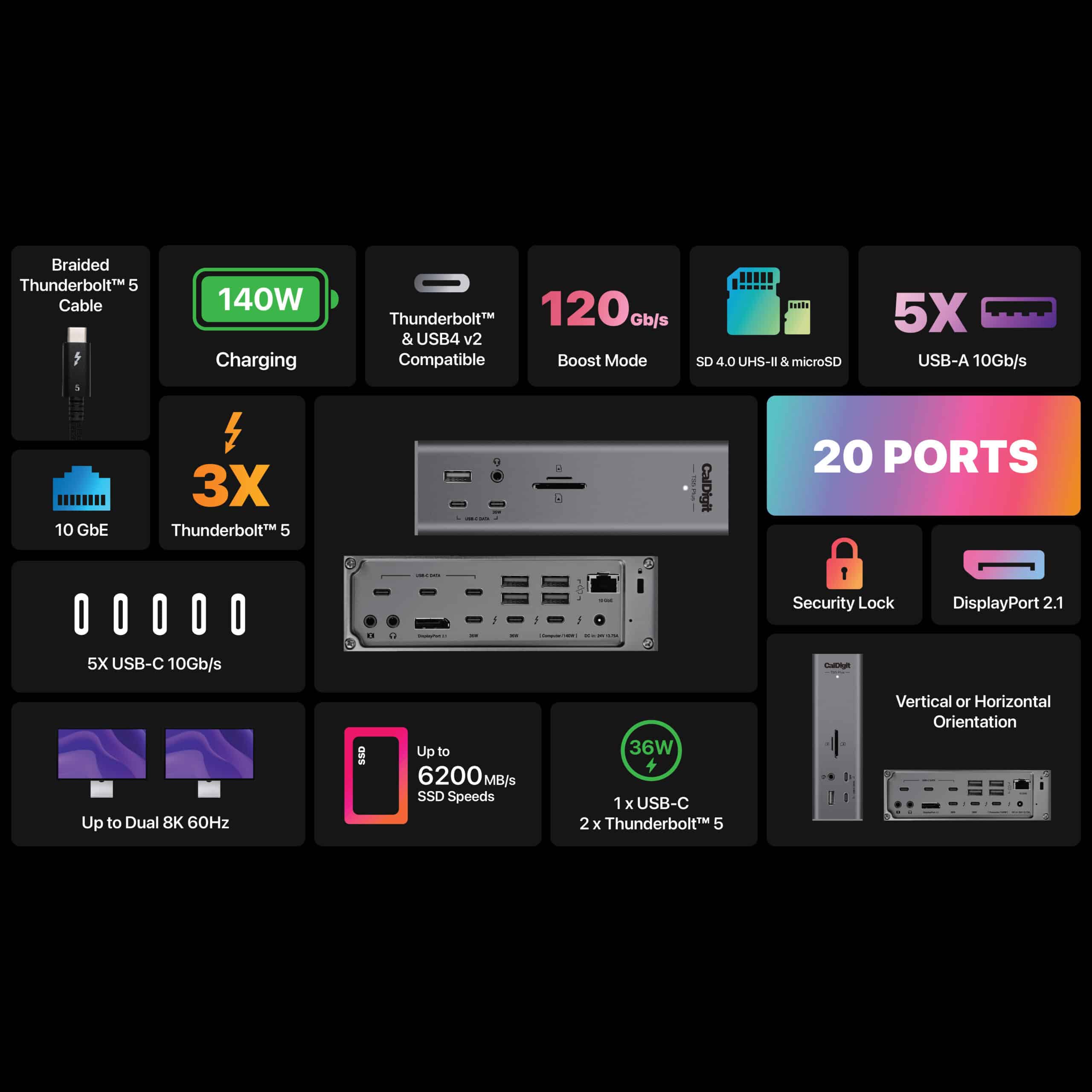

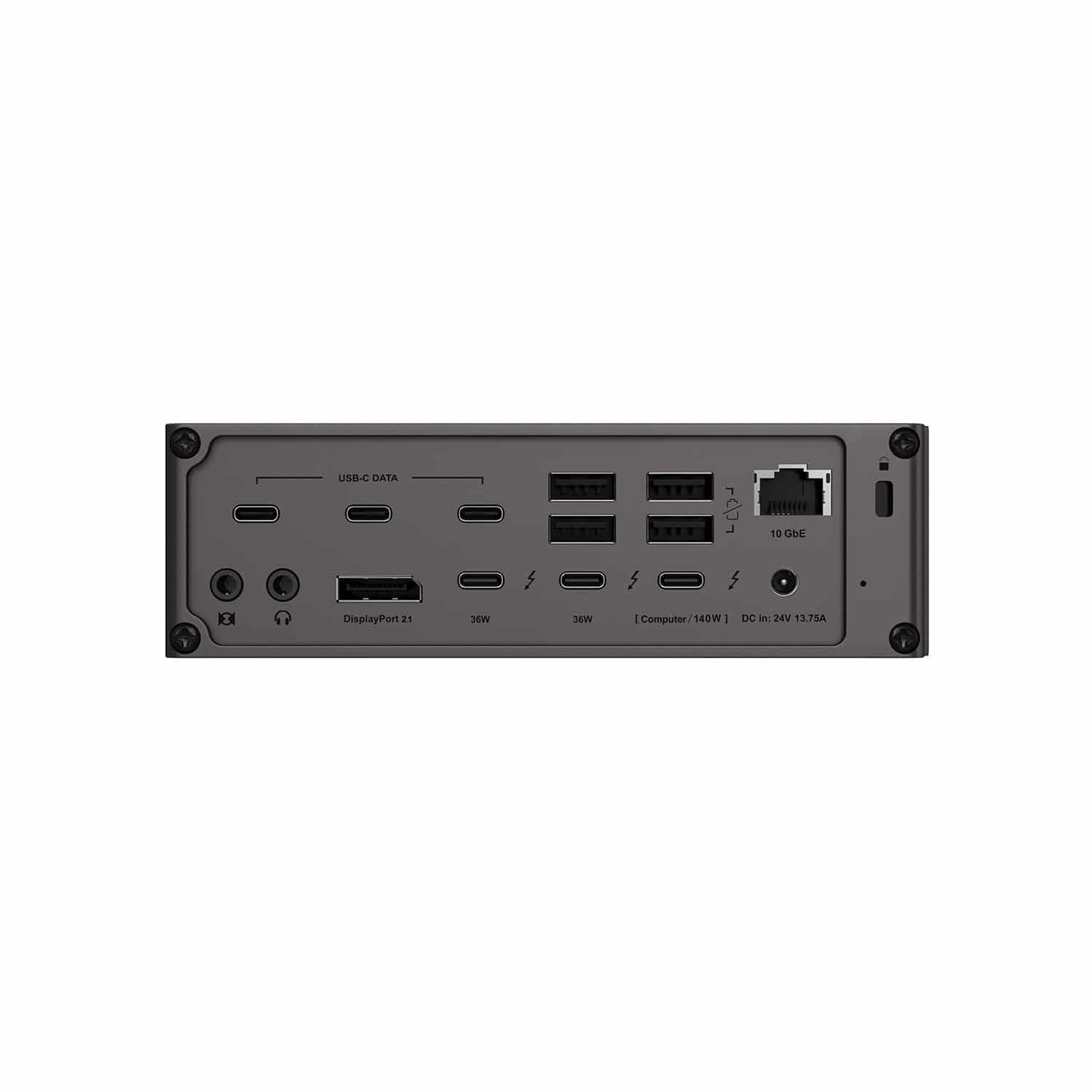

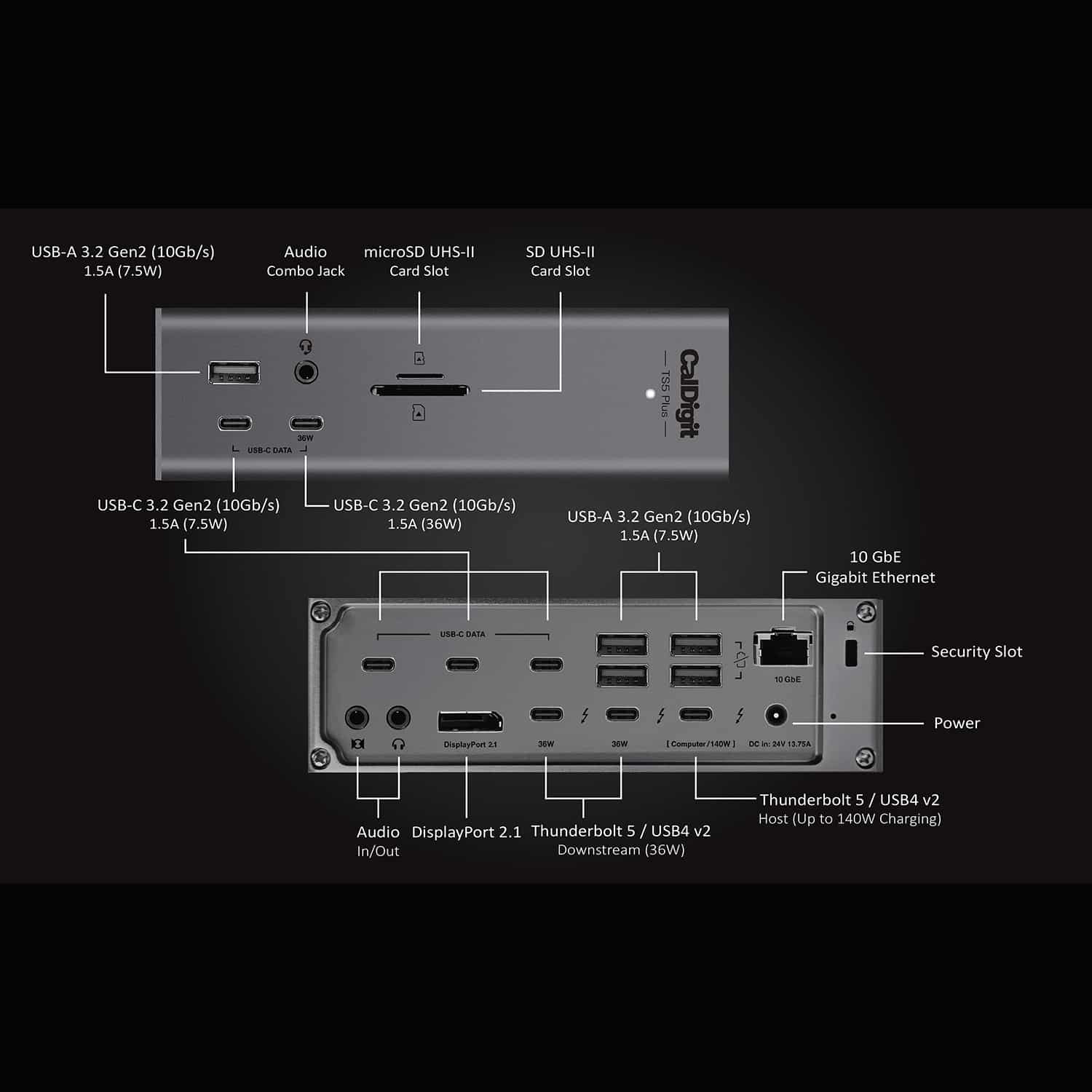

Interface

• 1 x Thunderbolt 5 Host (Up to 120Gb/s)
• 2 x Thunderbolt 5 (80Gb/s)
• 5 x USB-C (10Gb/s)
• 5 x USB-A (10Gb/s)
• 1 x DisplayPort 2.1
• 1 x SD 4.0 (UHS-II)
• 1 x microSD 4.0 (UHS-II)
• 1 x 10 Gigabit Ethernet
• 1 x Front Combo Audio In/Out (3.5mm)
• 1 x Rear Audio Out (3.5mm)
• 1 x Rear Audio In (3.5mm)
• 1 x DC In (24V 13.75A)



Minimum System Requirements

• macOS 15 or above
• Windows 11 or above
• iPadOS
• Thunderbolt 5 Computer
• Thunderbolt 4 Computer
• Thunderbolt 3 Mac
• USB4 or USB4 v2 Computer
• Thunderbolt/USB4 iPad
• Power Delivery
• Thunderbolt 5/USB4 Host Port: Up to 140W
• Each Downstream Thunderbolt 5/USB4 Port: 36W
• One USB-C Port on the Front: 36W
• Remaining USB-C Ports: 7.5W
• USB-A Ports: 7.5W
• Size & Weight
• Height: 6.10” (155.0mm)
• Width: 1.85” (47.0mm)
• Length: 5.03” (127.9mm)
• Weight: 1.98 lbs (0.90kg)

In the Box

• 1 x CalDigit TS5 Plus
• 1 x Thunderbolt 5 Braided Cable (1.0m)
• 2 x Rubber Feet Strips
• 1 x Power Cord
• 1 x Power Supply (330W)
• Warranty 2 Years

Up to Dual 4K 240Hz resolution is supported on compatible macOS & Windows computers that support that resolution. Triple displays on Windows requires a compatible Thunderbolt 5 host computer. macOS does not support Triple displays via a Thunderbolt 5 connection.

Ethernet is only supported on Thunderbolt based hosts as well as USB4 hosts that support PCIe. Please contact your USB4 host manufacturer for PCIe support information.

The second USB controller is only supported on Thunderbolt based hosts, as well as USB4 hosts that support PCIe. Please contact your USB4 host manufacturer for PCIe support information.

Compatibility Information

The TS5 Plus is not compatible with USB-C host computers such as USB-C laptops, USB-C tablets, and USB-C phones. You can of course use USB-C accessories with the TS5 Plus.

The TS5 Plus is not compatible with Thunderbolt 3 Windows PCs.
