Sonnet Echo 5 – Thunderbolt 4 Hub

Sonnet Echo 5 – Thunderbolt 4 Hub

The Echo 5 is a compact universal Thunderbolt 4 Hub by Sonnet Tech.
  • Four Thunderbolt 4 Ports.
  • Front Panel USB 3.2 Charging Port.
  • 8K Display Support.
  • Compatible with Mac, Windows, Chromebook, and iPad Pro.

£174.00 inc.Vat | £145.00 ex.VAT

SKU: ECHO-HB5-T4 Categories: , Tags: , Brand:

Description

Connect to Your Peripherals and Power Your Computer with One Cable

Plug in your Thunderbolt devices, monitor(s), and USB peripherals, and then connect them all to your computer from the hub with the included Thunderbolt cable.
Echo 5 Thunderbolt 4 Hub will even power your laptop with up to 85W of charging power.  When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.

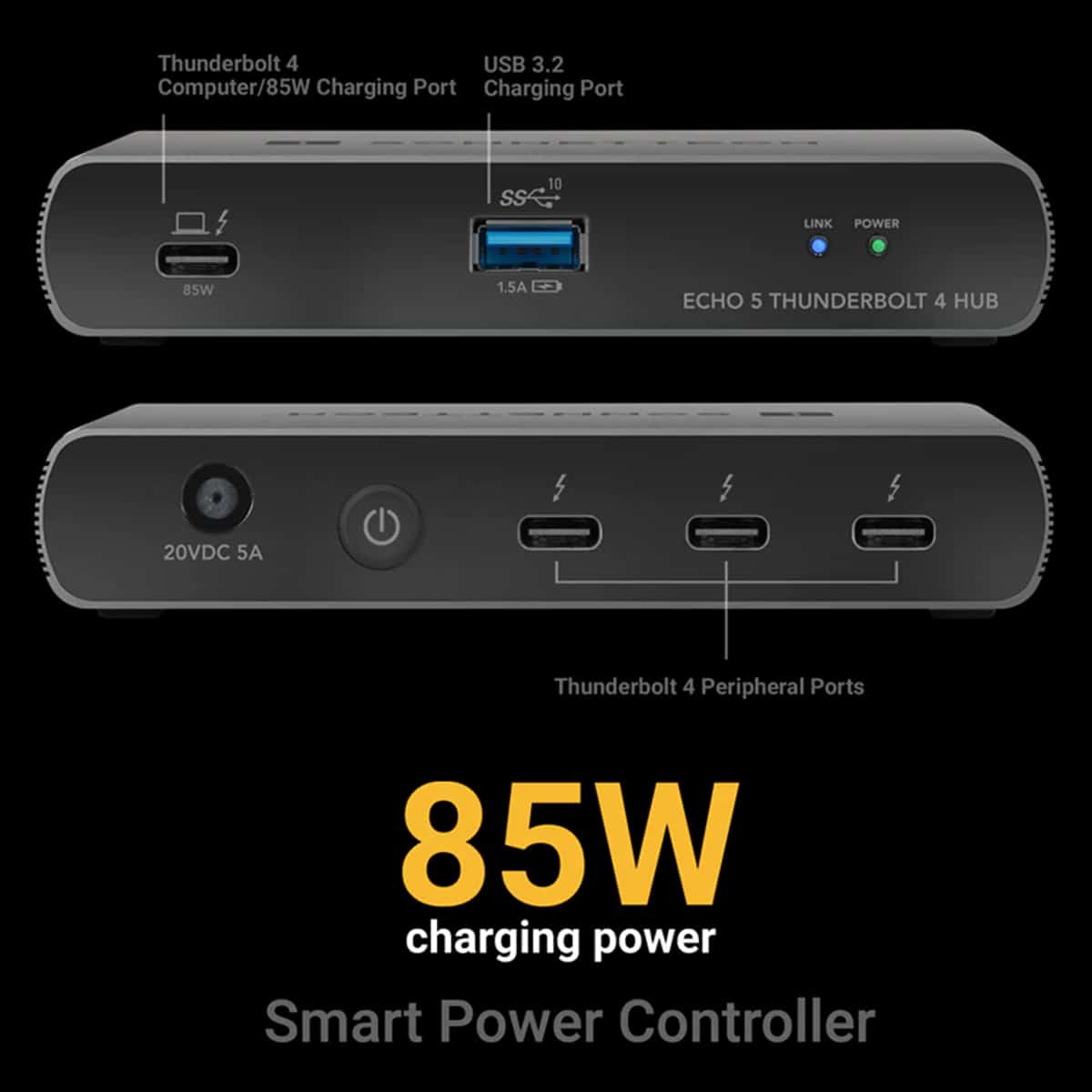

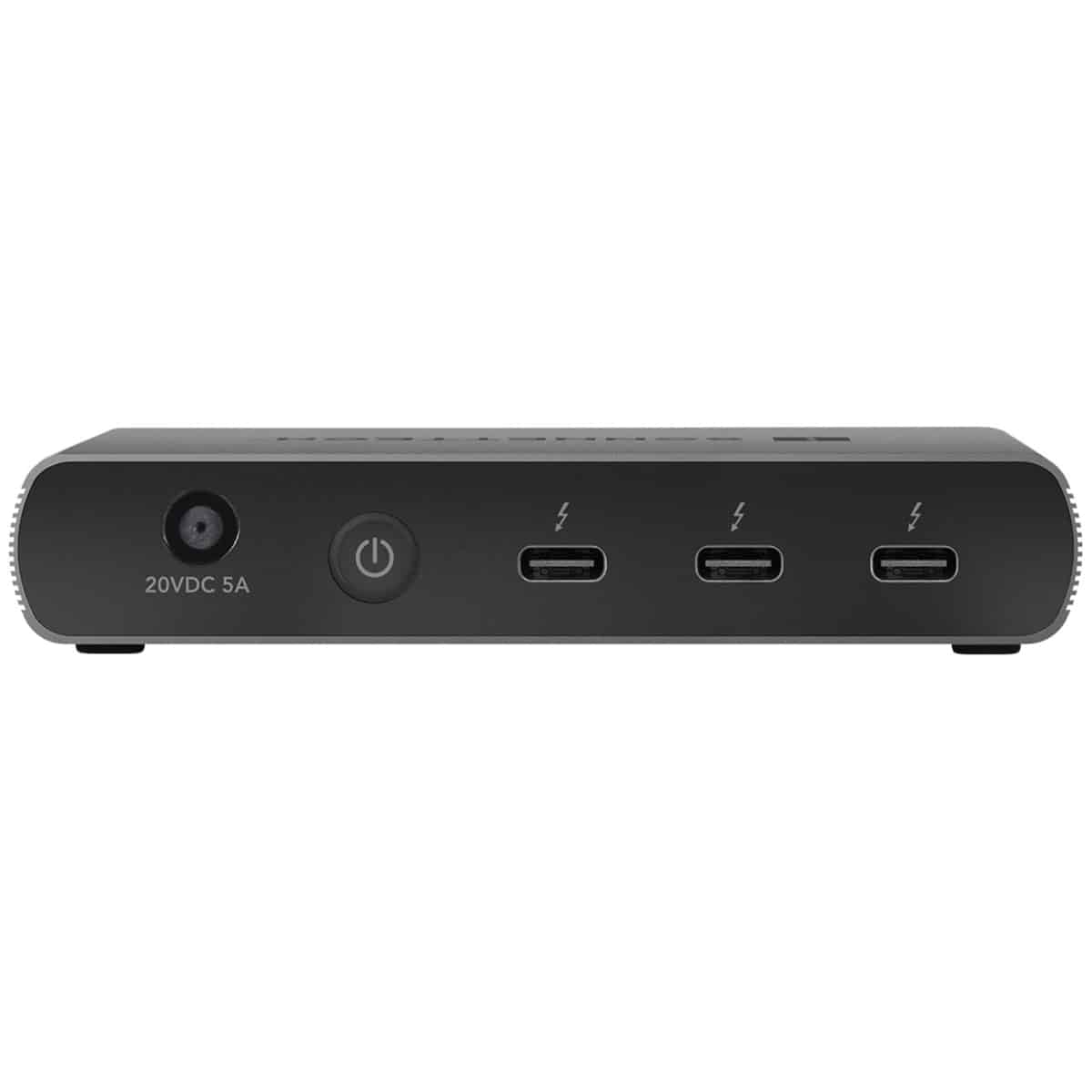

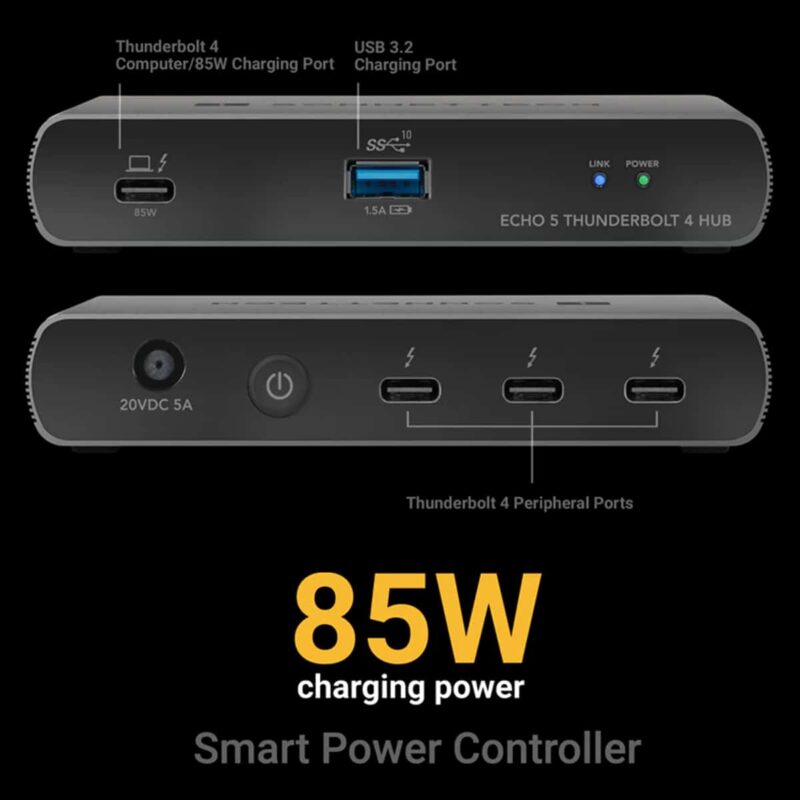

Based on the Intel Goshen Ridge controller, Echo 5 Thunderbolt Hub features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to connect Thunderbolt peripheral devices.
The Thunderbolt ports also support USB4 and USB 3 peripherals. For bus-powered devices, the Hub’s Thunderbolt peripheral ports provide 15W per port, supporting the most demanding bus-powered Thunderbolt and USB peripherals – they can even charge your iPhone or iPad twice as fast as using the USB Type A port.

Connect your Super Fast USB NVMe SSDs at Full Speed

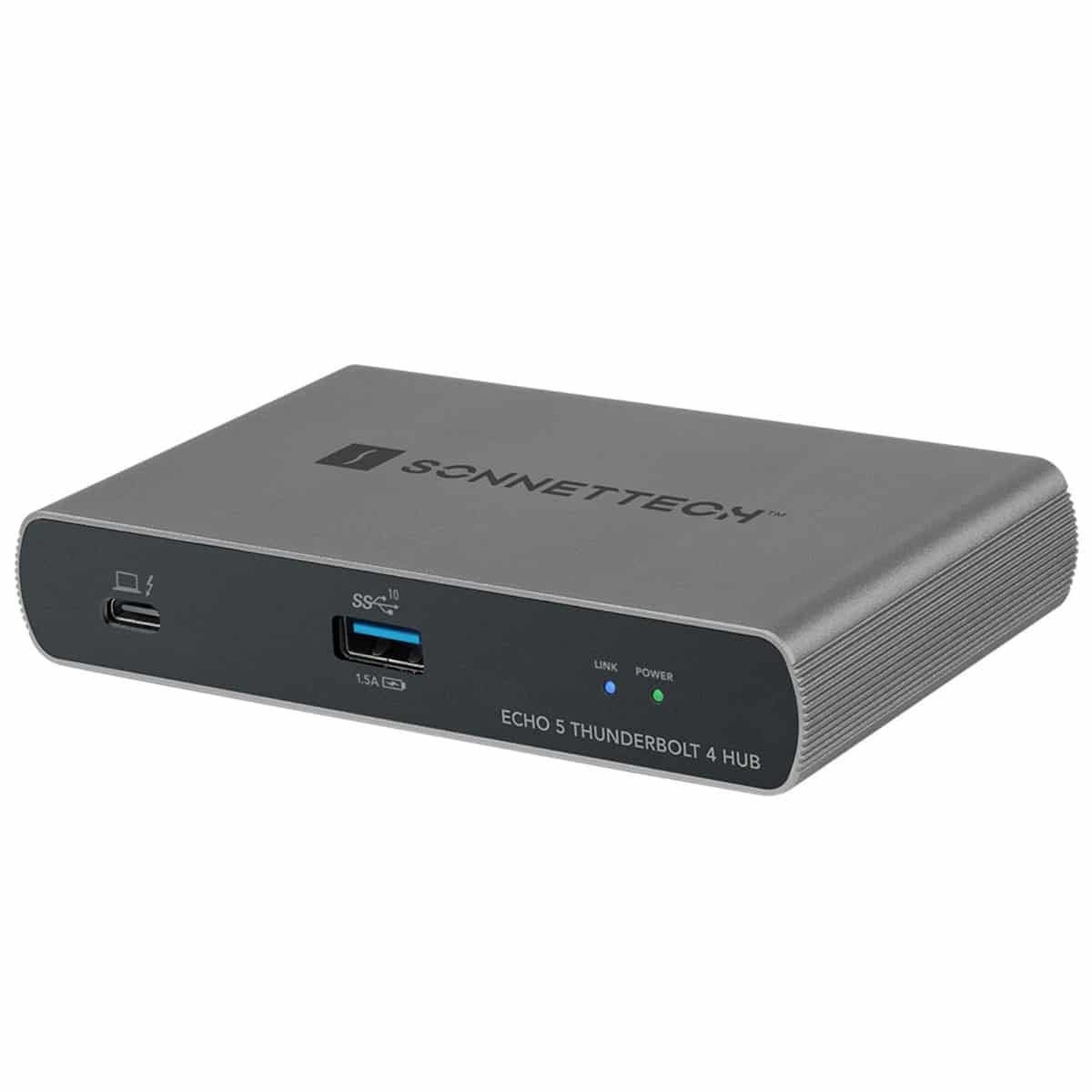

Echo 5 Thunderbolt 4 Hub features a USB 3.2 Gen 2 (10Gbps) Type A port on the front to support super fast USB NVMe SSDs at full speed. And unlike some other hubs, Echo 5 doesn’t skimp on power either.
It provides up to 7.5W, ensuring bus-powered devices will operate without fail.

Supports 4K – 8K Monitor setups.

4k-8k monitors

Two 4K Displays Workflow (example Workflow)

  • M1/M2/M3 Max and Pro Macs
  • Thunderbolt 3 Intel Mac
  • Thunderbolt 4 Windows Computer
Port 1: 4K Thunderbolt/USB-C Monitor, or DisplayPort/HDMI Monitor (with Adapter).
Port 2: Sonnet Solo10G 10GbE Network Adapter.
Port 3: 4K Thunderbolt/USB-C Monitor, or DisplayPort/HDMI Monitor (with Adapter)
Other connection scenarios:
  • 6K Display Workflow
  • Two 5K Displays Workflow
  • Two Apple Pro Display XDR Workflow
  • iPad Pro with Display Workflow

Powerful 10Gbs Front Panel USB Port

Charge iPhone, iPad, USB Devices

Echo 5 hub also supports charging your iPhone, iPad, or other device that charges over USB.



Thunderbolt Certified for Mac, Windows, ChromeBook, and iPad Pro

Echo 5 Thunderbolt 4 Hub is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 4 and USB4 Windows computers; Thunderbolt 3 Windows computers with an Intel 8th Gen (2018) or newer CPU; Thunderbolt 4 and USB4 Chromebook computers; and M series iPad Pro.
See Tech Specs for current computer and OS compatibility information.
  • Compatibility:
  • Mac Compatibility
  • Mac (M1/M2/M3) supports only one display
  • Mac (M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2 Ultra, or M4) supports two displays
  • Mac (Intel) with Thunderbolt 3 ports supports two displays, up to two 6K
  • macOS 11+
  • macOS Sequoia compatible
  • Windows Compatibility
  • Windows computer with Thunderbolt 4 or 5 port
  • Windows computer with a Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU
  • Windows computer with a USB4 port
  • Windows 11 and 10
  • Chromebook Compatibility
  • Chromebook with a Thunderbolt 4 port or USB4 port
  • iPad Pro Compatibility
  • M1/M2 iPad Pro supports only one mirrored display



Additional information

Manufacturer

Sonnet
Interface

Power

Mains Powered
Warranty

2 Years
