Sonnet ECHO 11 THUNDERBOLT 4 DOCK

Description

Sonnet Thunderbolt 4 Dock

• Universal Thunderbolt 4 Docking Station with Four Thunderbolt 4 Ports and 8K Display Support
• One Cable Peripheral Connection
  Instant access – plug peripherals into the Echo 11 and connect your computer to the dock with the included Thunderbolt 4 cable.
• Eleven Interfaces

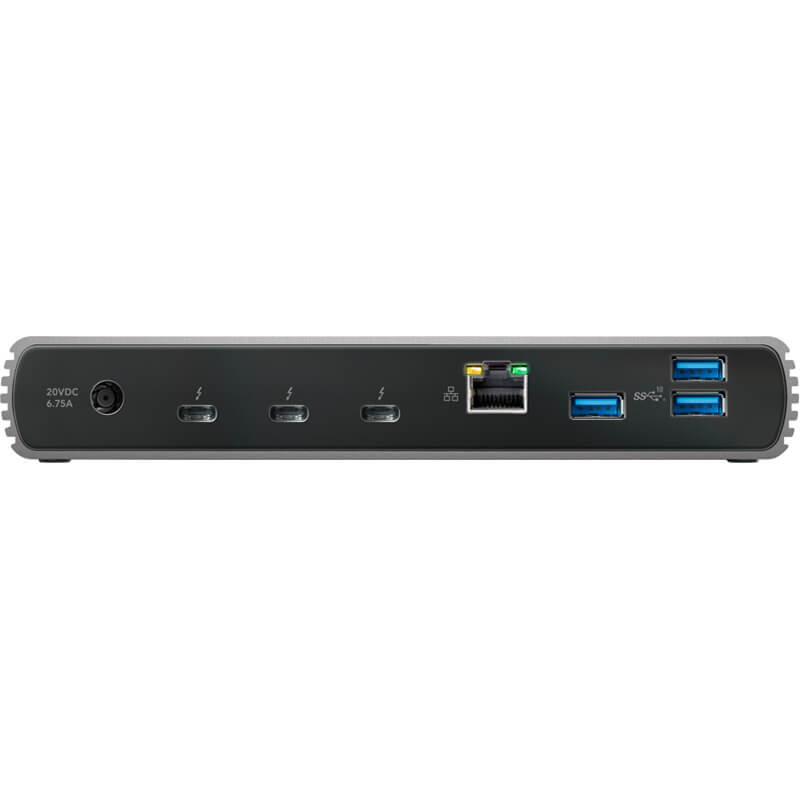

  Includes four Thunderbolt 4, three USB 3.2 Gen 2 Type A, one USB 2.0 Type A (charging), one RJ45 Gigabit Ethernet, and one 3.5 mm combo audio ports; one SD 4.0 card slot.
• Three Thunderbolt 4 Ports for Peripherals
  Connects three Thunderbolt peripherals directly (with support for daisy chaining additional peripherals). Also supports USB4 and USB 3 devices.
• Powerful 10Gbps USB Type A Ports
  Three USB 3.2 Gen 2 ports provide up to 7.5W of power each, supporting super fast USB NVMe SSDs at up to full speed.
• Support for 4K, 5K, 6K and 8K @60Hz Displays
  Depending on your computer, supports up to two 5K displays or a single 4K, 5K, 6K, or 8K display (see Compatibility PDF).
• Many Display Interfaces Supported
  Connect Thunderbolt 3 and USB-C displays directly. Supports HDMI, DP, DVI, and other displays with a Thunderbolt 3 compatible adapter (sold separately).
• Charge Your Laptop
  Provides up to 90W through the included Thunderbolt 4 cable to power and charge your laptop(2).

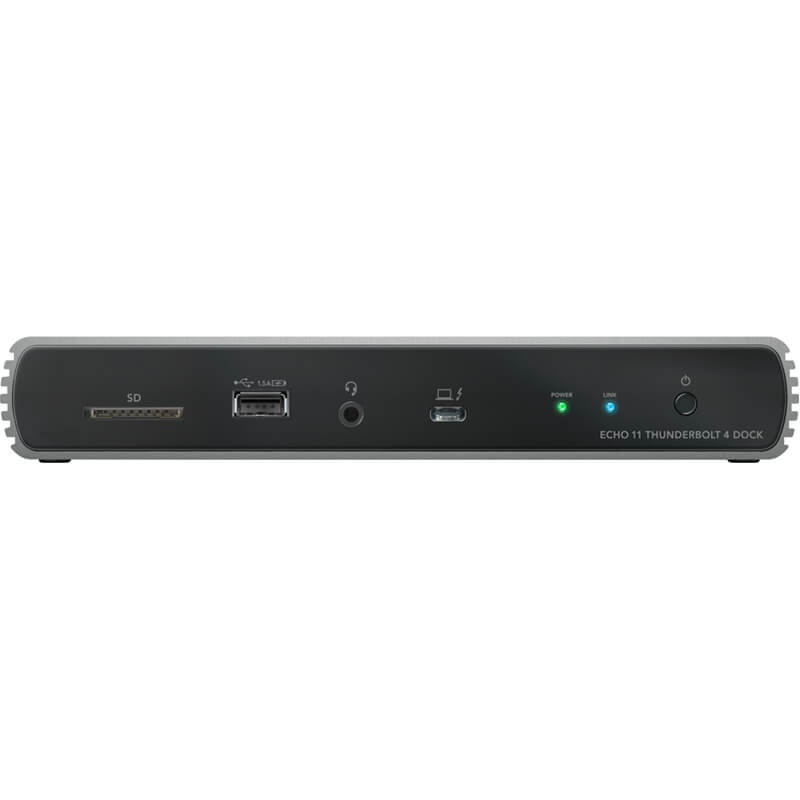

• USB 2.0 Charging Port
  Front panel USB port charges an iOS device or other device that charges via USB.
• Fast SD Card Slot
  Compatible with SD, SDHC, and SDXC memory cards; supports 320 MB/s read speeds with UHS-II SDXC cards.



BUILT FOR TODAY. DESIGNED FOR TOMORROW

All the connections you expect from a Thunderbolt dock plus the Thunderbolt hub you’ve always wanted. With this extraordinary dock, a single cable connects your laptop to your digital world. Sonnet’s Echo 11 Thunderbolt 4 Dock – the universal docking station for today and tomorrow.

• Directly attach three Thunderbolt peripherals – and daisy chain up to a total of 5 devices
• Attach three USB devices
• Connect up to two 5K displays;
• or a single display up to 8K!
• Connect and charge your laptop at up to 90W Power Delivery
• Link to a Gigabit Ethernet Network
• Plug in your headset
• Charge your phone
• Read your SD cards



CONNECT TO YOUR PERIPHERALS AND POWER YOUR COMPUTER WITH ONE CABLE

Plug in your monitor(s), Thunderbolt devices, USB peripherals, and Ethernet cable. Then connect them all with a single Thunderbolt cable from the dock to your computer. The Echo 11 Thunderbolt 4 Dock will even power your laptop with up to 90W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop and go.

THUNDERBOLT MULTIPLIED – TURN ONE THUNDERBOLT PORT INTO THREE

TRULY UNIVERSAL CONNECTIVITY FOR WORK AND PLAY

The Echo 11 Dock features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to directly connect Thunderbolt peripheral devices (and daisy chain up to a total of 5 devices). The Thunderbolt ports also support USB4 and USB 3 peripherals. For connected peripherals using bus power, the Dock’s Thunderbolt peripheral ports provide 15W per port, supporting even the most demanding bus-powered Thunderbolt and USB peripherals.

VERSATILE THUNDERBOLT EXPANSION

Perfect for Mac and Windows computers, including Apple® M1 Macs with limited Thunderbolt ports. Connect the dock and create three separate independent Thunderbolt expansion chains. Add and disconnect devices from one chain without affecting the others.



• Port 1
  ‍Thunderbolt Desktop Raid Storage + Thunderbolt 3/USB-C or DisplayPort®/HDMI® (with Adapter) Monitor
• Port 2
  ‍Sonnet Solo10G™ 10GbE Network Adapter
• Port 3
  ‍ Thunderbolt 3/USB-C or DisplayPort/HDMI (with Adapter) Monitor





• Port 1
  ‍Sonnet Echo Express SE I (with audio capture card) + Sonnet CFexpress/XQD Pro Card Reader + Bus-powered Thunderbolt 3 SSD Drive
• Port 2
  ‍5K Display
• Port 3
  ‍Thunderbolt Desktop RAID Storage + Sonnet Solo10G 10GbE Network Adapter





• Port 1
  ‍5K Display
• Port 2
  ‍Sonnet Solo10G 10GbE Network Adapter
• Port 3
  ‍5K Display
