Sonnet FUSION DUAL 2.5-INCH SSD RAID

Description

Features

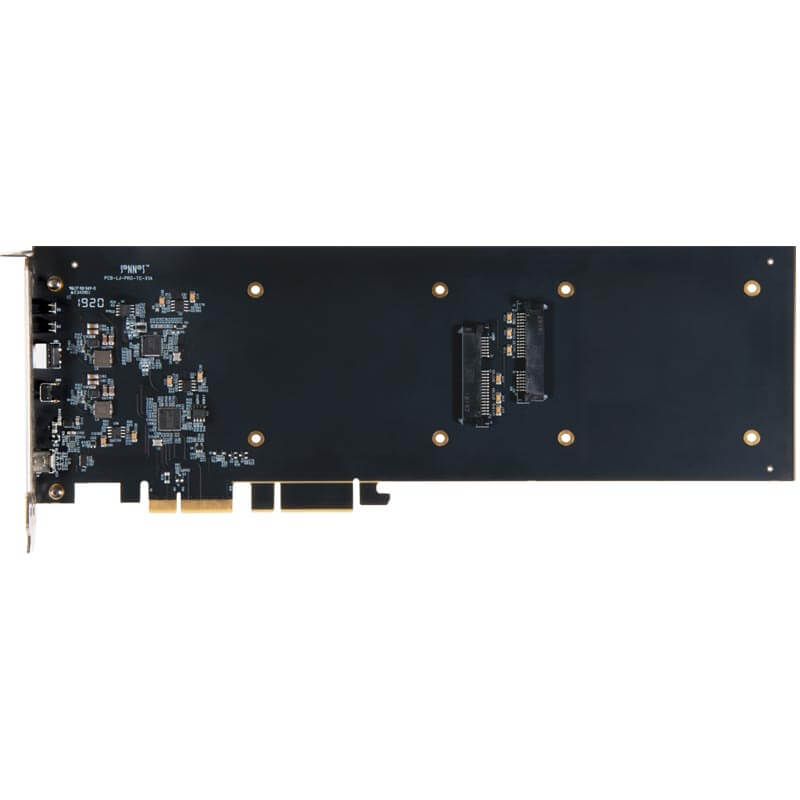

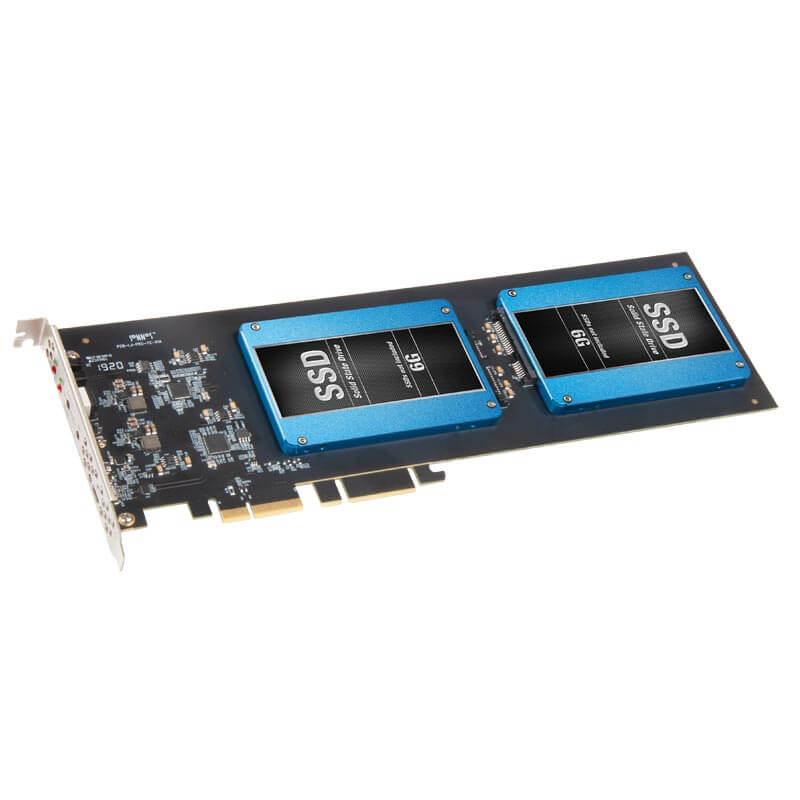

• Dual 2.5-inch SSD PCIe 3.0 card with hardware RAID controller, plus 10Gbps USB-C port
• Add up to 8TB of SSD Storage

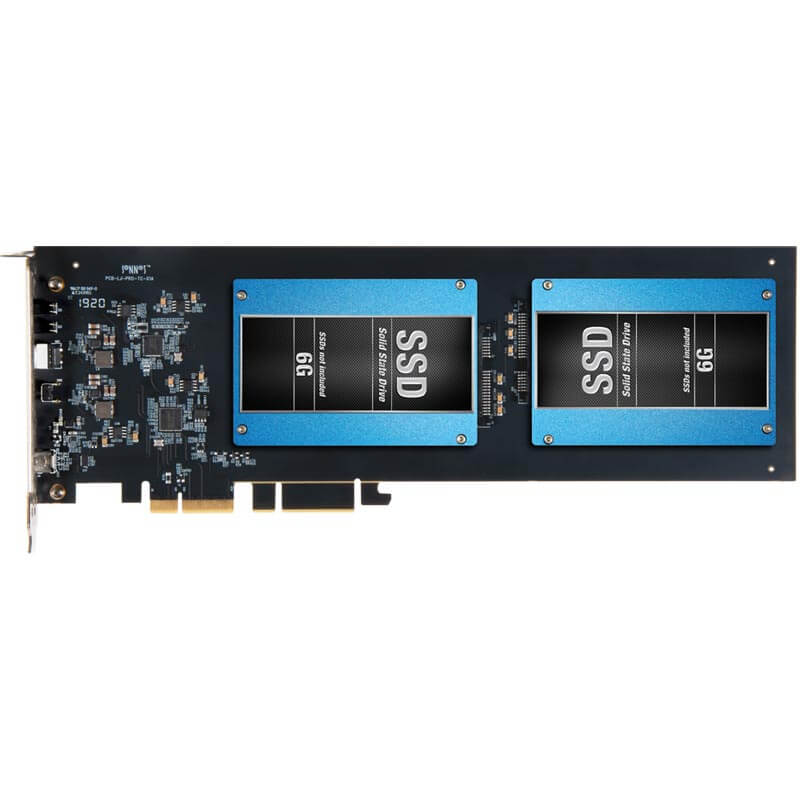

  Mounts two cost-effective 2.5-inch SATA SSDs (sold separately) in a full-length PCIe slot
• Great SSD Performance
  Supports data transfers speeds up to 1000 MB/s⁽²⁾
• Onboard Hardware RAID Controller
  Supports RAID 0, RAID 1, Span, and JBOD configurations in macOS®, Windows, and Linux
• USB 3.2 Gen 2 USB-C Port
  Includes SuperSpeed USB-C 10Gbps port to connect a fast external drive
• Great USB Performance
  Supports data transfers speeds up to 1000 MB/s⁽³⁾
• Power for Peripherals
  Supports a USB bus-powered SSD, SSD RAID, or hard drive device with up to 15W power
• Optimized for Thunderbolt
  Use in Sonnet Thunderbolt expansion systems at full performance
• Mac, Windows & Linux Compatible
  Supports Mac, Windows, and Linux computers with PCIe 3.0 slots

MAC COMPATIBILITY

• Mac Pro 5,1 (Mid 2010 & Mid 2012) with available full-length PCIe slot
• Mac Pro 7,1 (2019)
• macOS 10.12.6+⁽⁴⁾
• macOS Catalina compatible

WINDOWS COMPATIBILITY

• Computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred)
• Windows 10, 8.1, 7
• Windows Server 2016, 2012, 2008 (64-bit editions)

LINUX COMPATIBILITY

• Computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred)
• Linux Kernel 5.0+

THUNDERBOLT COMPATIBILITY

• Mac computer with Thunderbolt 2 or Thunderbolt 3 ports via a Thunderbolt 2 or 3 to PCIe card expansion system with available full-length PCIe slot
• Windows computer with Thunderbolt 3 ports via a Thunderbolt 3 to PCIe card expansion system with available full-length PCIe slot
• Linux computer with Thunderbolt 2 or Thunderbolt 3 ports via a Thunderbolt 2 or 3 to PCIe card expansion system with available full-length PCIe slot.

TECHNICAL NOTES

1. As of 01/2020, the current maximum capacity of 2.5-inch SATA SSDs is 4TB. This product will support higher capacity SSDs as they become available. Read/Write performance measured with SanDisk Ultra II SSDs using ATTO Disk Benchmark, 64MB transfers.
2. This product’s SSD performance will vary based on the type and number of SSDs used, simultaneous data transfers via the card’s USB port, and the computer’s PCIe architecture.
3. This product’s USB performance will vary based on simultaneous data transfers via attached SSDs, and the computer’s PCIe architecture.
4. macOS 10.12 erroneously reports a 5Gbps connection when connected at 10Gbps.
