Teradek – Ranger 4K Receiver (V-Mount)

Teradek – Ranger 4K Receiver (V-Mount)

4K 12G-SDI/HDMI Wireless RX – V-Mount. Call for pricing.

Features

  • Wireless 4K (2160p60) HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Directional antenna for superb wireless performance
  • Up to 3,000 ft. of wireless range or 5,000 ft. with panel antenna (included)
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidths
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Broadcast-capable
  • Multicast-capable up to 6 receivers

SKU: TER-10-2522-V Category:

Description

NEXT-LEVEL WIRELESS PERFORMANCE

Ranger is the world’s first zero-delay (< 1 ms) wireless video system to transmit uncompressed 4K HDR video up to 5,000 ft. line of sight. With best-in-class performance in challenging RF conditions and a wide operating range from 4.9 GHz to 6.0 GHz, Ranger offers live productions the ultimate combination of incredible video quality and wireless integrity.

POWER THROUGH INTERFERENCE

Teradek’s patented Joint Source Channel Coding (JSCC) technology, utilizing MIMO and OFDM, enables the transmission of uncompressed, 10-bit, 4:2:2 video at less than 1 millisecond of delay. Ranger’s exclusive RF design is UNII-5 ready and utilizes 40 MHz / 20 MHz channels with far greater efficiency than H.264 / HEVC encoding solutions and offers better performance in the noisiest environments.

EASY SMARTPHONE CONFIGURATION

Command your wireless workflow from the palm of your hand with the Launchpad app for iOS and Android. Pair transmitters and receivers with the touch of a button, monitor channel interference, and set operating frequencies directly from the app, no cables needed.

UNBREAKABLE ENCRYPTION

Ranger offers the industry’s best protection against prying eyes with AES-256 encryption using RSA 1024 key pairing. Combined, these two technologies ensure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorization.

In The Box

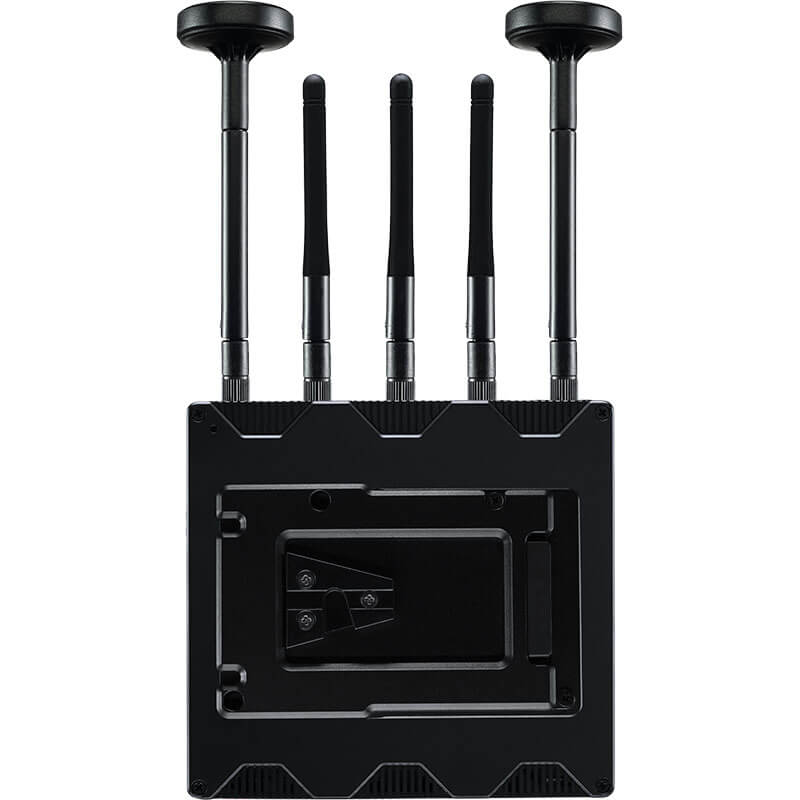

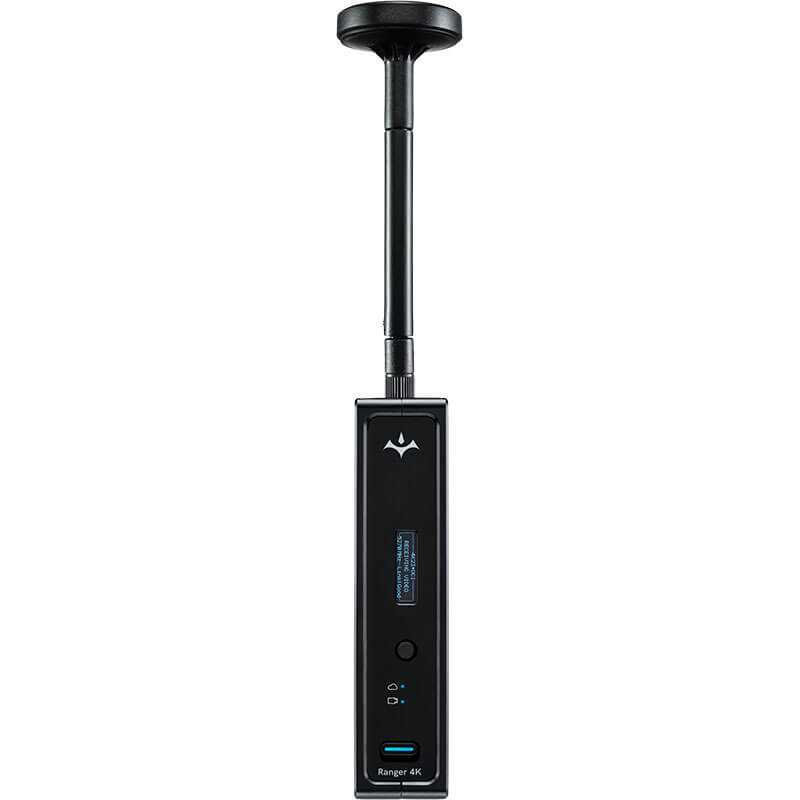

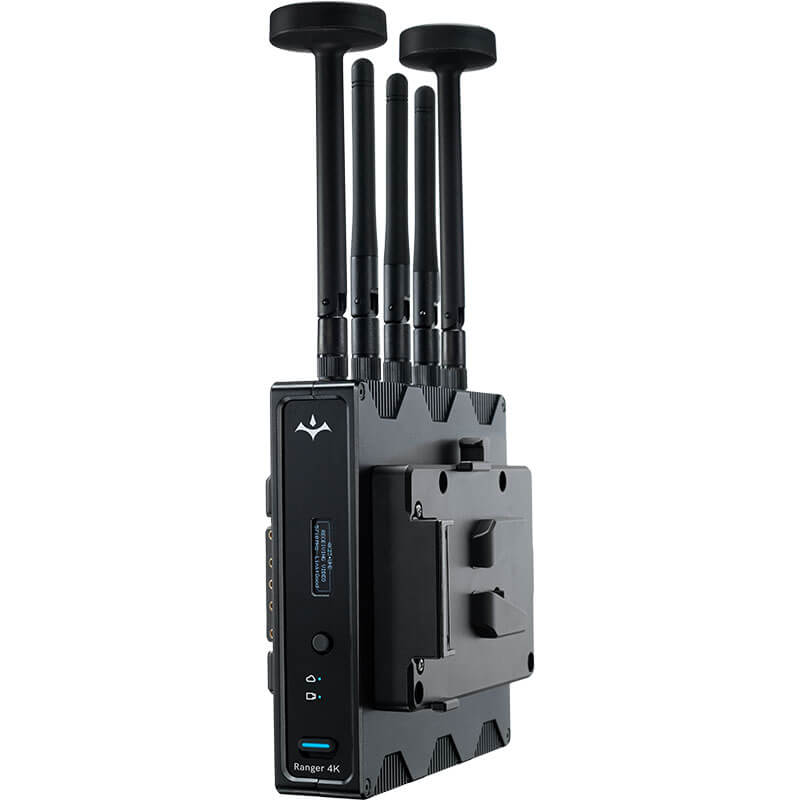

  • 1x Ranger 4K Receiver (V Mount)
  • 2x Battery Slot Cover
  • 1x Lightstand Adapter 1/4-20in
  • 2x Screw Flat Head Phillips Black SS M2 x 4mm
  • 1x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
  • 1x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
  • 1x SDI 12G BNC to BNC Cable Length: 18in / 46cm
  • 1x Sticker for Shipping Box – Ranger
  • 1x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
  • 3x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
  • 2x Antenna H Mushroom
  • 1x Teradek Standard Terms and Conditions
  • 1x Insert – Product Register
  • 1x Quickstart Guide – Ranger 4K/HD

Additional information

Manufacturer

Teradek
Camera Accessory Type

Wireless Transmission
